Описание:

Спектрофотометр цифровой

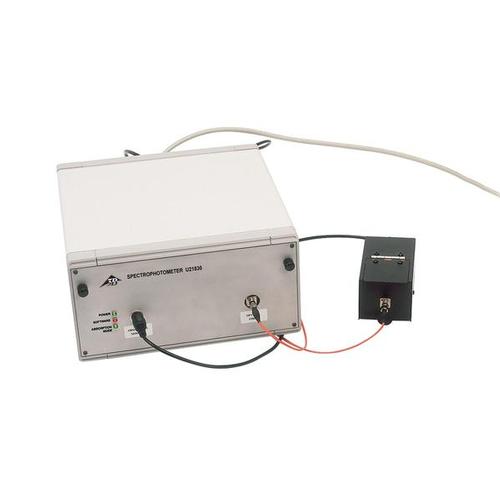

This digital spectrophotometer is used for quantitative investigations of emission and absorption spectra and transmission curves, and for measurements related to calorimetry and chemical kinetics. Based on the

Czerny-Turner principle, this device permits simultaneous, real-time recording and analysis of the entire visible range from 380 nm - 830 nm in conjunction with the user-friendly measurement and evaluation software. Light recorded by means of an optical fiber and projected on a CCD detector via two mirrors and a reflection grating.



Includes an absorption module with cell and slide holders for disposable cells and color filters, a software program and various connecting cables.

Spectral range: 380 - 830 nm

Wavelength accuracy: 0.25 nm

Resolution: 1 nm

Transmission: 0% - 100%

Resolution: 0.1%

Absorption: 0% - 100%

Resolution: 0.1%

Optical configuration: Czerny Turner

CCD detector: 2048 pixels

Absorption module:

Quartz halogen lamp: 12 V/20 W

Optical connection: via optical fiber

Mains voltage: 115 V/230 V, 50/60 Hz

Dimensions: 315x175x322 mm

Weight: 6.6 kg



Scope of delivery:

1 Spectrophotometer

1 Absorption module

1 CD with software

1 Optical fiber, 1 m

1 PC connection cable (USB)

1 DIN cable for connecting the absorption module

1 Plug-in power supply

100 Disposable cells

1 Operating manual



Software:

• Real-time recording of emission and absorption spectra as well as transmission curves

• Simultaneous recording of spectra over the entire wavelength range (recording time per spectrum less than 2 ms)

• Export of measured data to standard text and bitmap formats, as well as Regressi and Excel formats

• Recording of spectra as a function of time (chemical kinetics)

• 3D display; functional relationship between absorption, time and wavelength

• Display of spectra in authentic colors

• Display of several spectra in one diagram

• Manual calibration option

• Wavelength measurements

• Recording and evaluation of concentration measurements (Beer-Lambert law)

• Zoom and cursor function

• Storage of recorded spectra

• Color printout of spectra
